Safe Automatic Anodizing Line With Multiple Protections (Overcurrent, Collision Avoidance) For Aluminum Workers

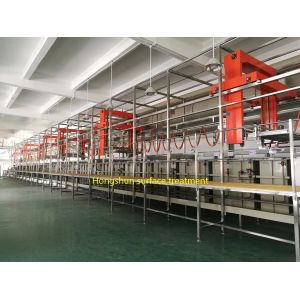

Automatic Anodizing Production Line Overview
Worker safety is non-negotiable, and our Safe Automatic Anodizing Line is equipped with multiple protections to ensure a secure working environment. The gantry cranes feature: overcurrent protection (prevents motor burnout), upper/lower limit switches (prevents over-lifting/lowering), and collision avoidance systems (uses proximity switches to prevent crane collisions). Electrical safety is ensured via ground fault circuit interrupters (GFCIs) and surge protectors, while the SS electrical cabinet (IP54 rating) prevents electrical hazards from moisture or chemicals. The line’s tanks have anti-slip edges and safety guards, and emergency stop buttons are placed at 5m intervals along the line for quick shutdown. For chemical safety, the line has an independent exhaust system (removes acid/alkali fumes) and splash guards (prevents chemical spills). Operators are protected from high temperatures via insulated tank lids and heat-resistant gloves (provided as part of the system). The PLC control system includes safety interlocks: for example, the crane cannot move if the tank lid is open, and the anodizing process stops if current exceeds safe levels. Training materials (included) educate workers on safe operation, and the line complies with global safety standards (e.g., OSHA, CE). Suitable for facilities prioritizing worker well-being, this safe automatic anodizing line delivers productivity without compromising on safety.
Equipment Working Conditions
| Environmental temperature | 0℃~45℃ is most suitable |
| Relative humidity | less than or equal to 90% |
| Water pressure | 0.3Mpa |
| Source of steam | 0.2~0.5Mpa |
| Main power supply | 380±10%/50HZ,25V-3000A rectifier, Refrigerator 22.5KW, Filter 8KW |
Process Flow of Automatic Anodizing Production Line
For a complete technical solution of Automatic Anodizing Production Line, please contact us. We will customize the design based on your product technical requirements and factory layout.
After-sales Technical Services
- 12 months free technical support and service (except consumables) with free maintenance for parts damaged by non-human operation errors
- Lifetime paid technical support after warranty expiration
- Chinese and English documentation provided for installation, operation and maintenance
- Mechanical and electronic parts provided for one year
- Warranty copy provided with effective date, coverage and contact information
- On-site equipment monitoring by engineers within 6 months after delivery
